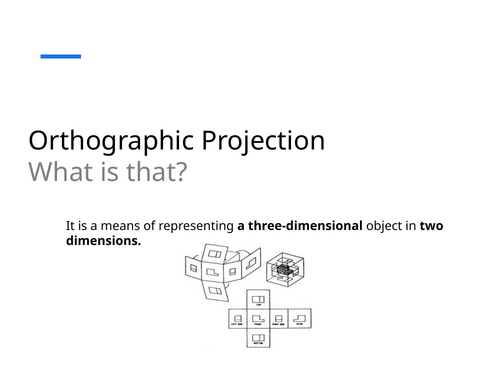

This set of resources has been created to support students in developing core engineering drawing skills through the use of traditional drawing equipment. The included presentations guide learners step-by-step through the process of producing both isometric drawings and orthographic projections using a drawing board, T-square, and set squares.
The materials focus on building accuracy, technique, and understanding of how three-dimensional objects can be represented on paper. Students are introduced to key principles such as constructing 30° isometric axes, projecting views, and producing standard front, top, and side views. Clear instructions and staged demonstrations help learners follow the correct procedures while reinforcing good drawing practice.
These resources are ideal for use in Design & Technology, Engineering, or Graphics lessons, particularly when introducing manual drawing methods before moving to CAD. They can be used as a teacher-led demonstration, independent student activity, or revision material.
By completing these tasks, students will gain confidence in using drawing instruments correctly and develop a solid foundation in technical drawing conventions.
