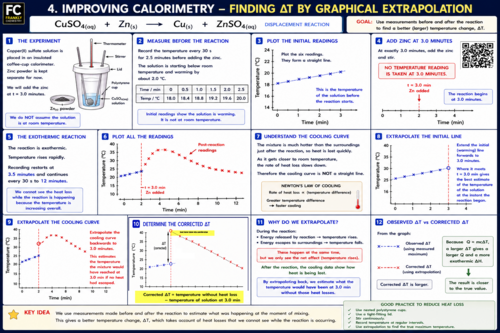

A clear visual guide to improving the accuracy of calorimetry experiments using graphical extrapolation, using the displacement reaction between zinc and copper(II) sulfate as the example:

Zn(s) + CuSO₄(aq) → ZnSO₄(aq) + Cu(s)

This resource explains not simply how to extrapolate a temperature–time graph, but why the technique gives a better value for ΔT.

Students are guided through the complete method:

Record the temperature of the copper(II) sulfate solution at regular intervals before the reaction begins.
Do not assume that the solution is initially at room temperature — it may already be warming or cooling.
Add the zinc at a precisely recorded time and stir the mixture.
Continue recording temperatures after the reaction as the mixture cools.
Plot the temperature readings against time.
Extrapolate the initial temperature trend forwards to the time at which the reactants were mixed.
Use the post-reaction cooling data to establish the cooling trend and extrapolate this backwards to the mixing time.
Determine the corrected ΔT from the difference between the two extrapolated temperatures.

A key conceptual point is emphasised throughout:

Heat is being lost to the surroundings while the reaction is taking place, but we cannot observe this heat loss directly because the energy released by the exothermic reaction overwhelms it and the temperature rises overall.

The subsequent cooling data provide evidence of the rate at which energy is escaping from the calorimeter. Extrapolating this cooling behaviour back to the mixing time allows us to estimate the temperature that would have been reached without this heat loss.

The corrected temperature rise is therefore larger than the directly observed temperature rise. Since:

Q = mcΔT

a more accurate ΔT produces a better experimental value for the enthalpy change.

The resource also reinforces good calorimetry practice, including insulation, use of a lid, continuous stirring and regular temperature measurements.

Suitable for A-level Chemistry and advanced GCSE/IGCSE students, particularly for practical work involving calorimetry, enthalpy changes, temperature–time graphs, extrapolation, heat loss and evaluation of experimental methods.

An accompanying animated visual sequence makes the resource suitable for classroom demonstration, revision and independent study.
